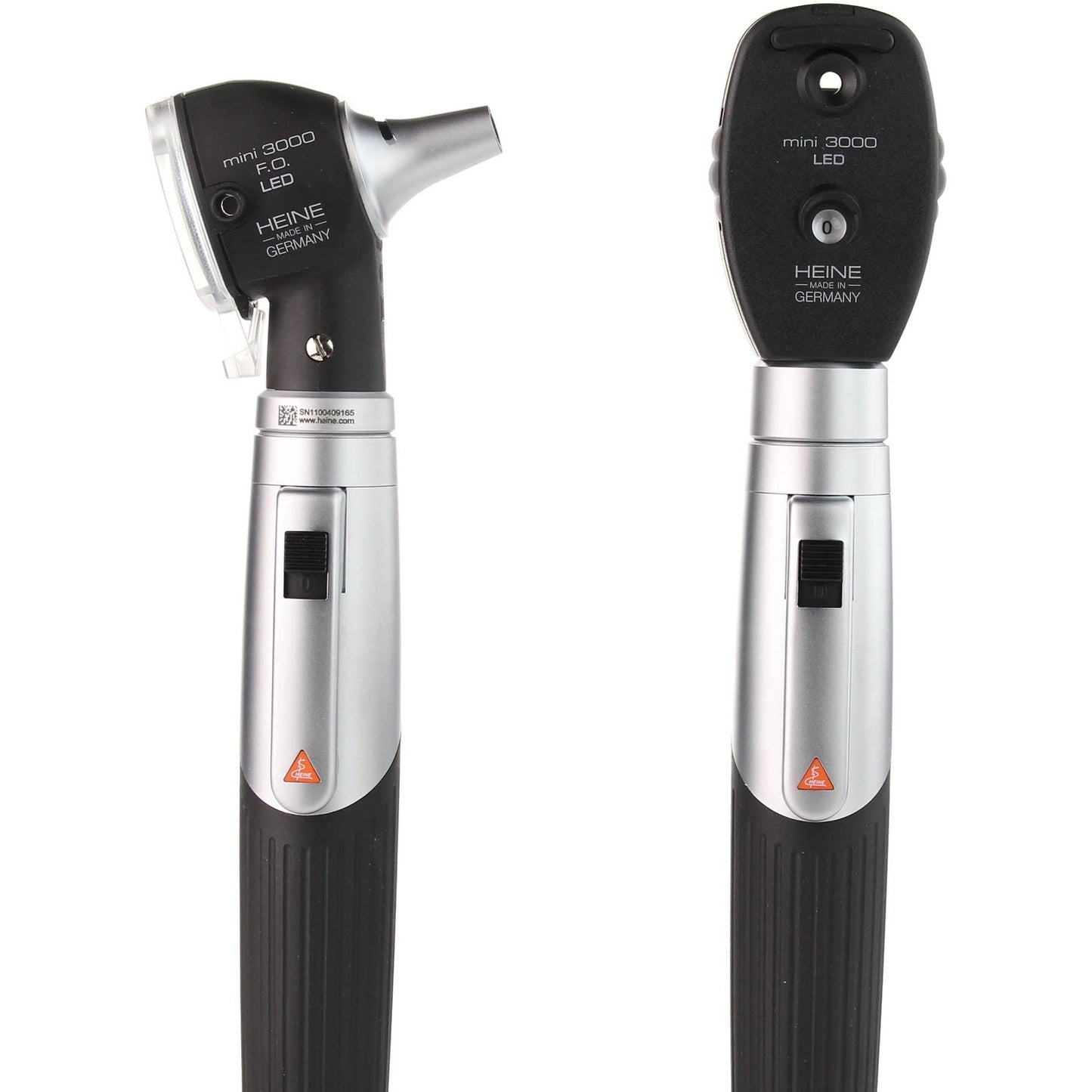

HEINE mini3000 2.5v LED Diagnostic Set with AA Battery Handle

Contents:

• mini3000 LED Fibre Optic Otoscope
• mini3000 LED Ophthalmoscope
• 4 x Reusable Tips
• 5 x 2.5mm AllSpec Disposable Tips
• 5 x 4mm AllSpec Disposable Tips
• Hard Case

mini3000 | Compact LED Pocket Ophthalmoscope

• A contemporary, precision engineered pocket ophthalmoscope.
• High performance LED bulbs for accurate colour rendering and bright and homogeneous illumination.
• Maintenance-free - no need to ever replace the LED bulb.
• Precision HEINE optics produce excellent quality images of the entire area under examination.
• Exclusive battery performance indicator which fades according to the current charge of the battery.
• Operation time of up to 10 hours, with batteries that need to be charged less often.
• Attachment clip with integrated off/on switch.
• Easy to maintain two-piece handle and head.
• Award-winning design - maximum quality with minimum dimensions.
• 5 different apertures including a fixation star.
• 18 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
• Rubber brow-rest prevents scratching of eyeglasses.
• 5 apertures:
  • Small - provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Star - for measuring eccentric fixation or locating lesions.
  • Hemispot - for a combination of depth perception and field of view.
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.

1 filters can be used in conjunction with any of the above apertures:

• Grey filter - for light sensitive patients.

Aperture Selection Disc
Switch easily between 5 apertures via a disc on the head.

5 apertures
Including a red-free filter and a separate grey filter.

LENS Selection Disc
Focus on the fundus, cornea, iris and other ocular structures.

LED illumination
Twice as bright as standard halogen bulbs.

mini3000 | Compact Pocket LED Otoscope

• A contemporary, precision engineered pocket otoscope.
• LED bulbs for consistant light output and bright, clear illumination with excellent colour rendering.
• Twice as bright as xenon halogen instruments
• Bulb situated away from the battery to keep cool and preserve battery life.
• Exclusive battery performance indicator - the light fades according to the current charge of the battery.
• Operation time of up to 10 hours.
• Maintenence-free operation - no need to ever replace the bulb.
• Easy clean swivelling viewing window.
• 3x magnification lens.
• Optimally engineered casing surface for the sharpest, reflection-free image.
• Insufflation port (for optional connector) allowing pneumatic testing of the tympanic membrane.
• Pocket clip with auto-off feature - switches off when returned to your pocket.
• Complete with mini3000 handle, runs on standard AA batteries.
• Award winning design - maximum quality / minimum dimensions.

True tissue colour
LED light for perfect colour rendering compared to xenon halogen.

Easy Clean
With swivelling lens for easy access.

Wide-angle Viewing Lens
With 3 x magnification.

Insufflation port
Attach an insufflation bulb for testing of the tympanic membrane via pneumatic otoscopy.

mini3000 | AA Battery Powered Handle (x2)

• Compact, stylish, ergonomically designed shape.
• Shock-proof, non-slip, robust.
• High quality engineered design in chrome finish.
• Screw on end cap for easy battery change.
• Pen style pocket clip with automatic power off when placed in pocket.
• Guaranteed 20,000 on/off cycles.
• Threaded metal connector for long life.
• Compatible with the full range of mini3000 instruments.
• Takes two standard AA size alkaline batteries (included).
• Free laser engraving to the handle end.

Quality Engineering
All metal screw on connector.

Simple operation
20,000 power cycles guaranteed.
